Splitter Boxes
NEMA 1
Application
- The splitter boxes are designed for indoor distribution of up to 600 V (max) service using either 3 or 4 wires.
Standards
- CSA Certified
- Complies with
- IEC 60529, IP20
Construction
- Formed and spot welded from 14 or 16 gauge steel.
- Factory installed splitter blocks.
- Series of knockouts on each side.
- Padlocking hasp.
Finish
- Enclosure and cover are finished in ANSI 61 gray powder coating.

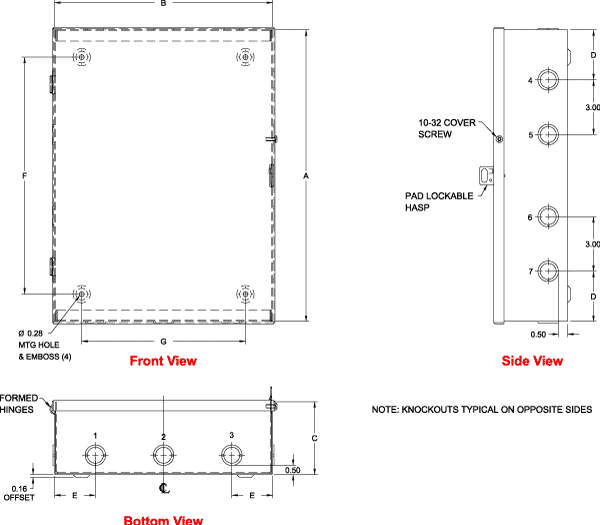

| Part No. (Click for DXF) | Grounding Kit Optional |
CU/AL Amps |
Dimensions | Conduit Size (Location) | |||||||||
| 3 Wire | 4 Wire | A | B | C | D | E | F | G | 1/2”-3/4” | 3/4”-1” | 2”-2 1/2” | ||
| CSB73 | CSB74 | CGK125 | 70/70 | 12 | 10 | 4 | 2.75 | 2.25 | 9 | 7 | 1,3,7 | 2,4 | - |
| CSB103 | CSB104 | CGK125 | 125/120 | 15 | 10 | 4 | 2.75 | 2.25 | 12 | 7 | 1,3,7 | 2,4 | - |
| CSB203 | CSB204 | CGK225 | 225/225 | 18 | 12 | 5 | 3.00 | 3.50 | 15 | 9 | 1,3,7 | 4 | 1,3 |
| CSB403 | CSB404 | CGK400 | 400/340 | 24 | 17 | 6 | 3.31 | 4.88 | 21 | 14 | - | - | - |
| CSB603* | CSB604* | CGK600 | 600/574 | 30 | 24 | 7 | 4.00 | 5.00 | 27 | 21 | - | - | - |
| * 14 gauge steel | |||||||||||||
| Part No. (Click for DXF) | CU/AL Amps |
Dimensions | Ship Wt. lbs |
|||
| 3 Wire | 4 Wire | H | W | D | ||
| CSB73 | CSB74 | 70/70 | 12 | 10 | 4 | 9 |
| CSB103 | CSB104 | 125/120 | 15 | 10 | 4 | 10 |
| CSB203 | CSB204 | 225/225 | 18 | 12 | 5 | 16 |
| CSB403 | CSB404 | 400/340 | 24 | 17 | 6 | 37 |
| CSB603* | CSB604* | 600/574 | 30 | 24 | 7 | 63 |
| * 14 gauge steel | ||||||
