Fan Tray
300, 600, 900 CFM
Application
- Rack mount fan trays provide a compact, economical solution for cooling in electronic cabinets.
- Fan trays can be positioned at the bottom of an enclosure to force air through the cabinet, at the top to exhaust air out of the cabinet or below specific pieces of equipment for spot cooling.
Standards
- UR/CUR listed
Features
- 300, 600 and 900 CFM sizes.
- 115VAC, 50/60Hz.
- 19" panel width mounting.
- Low profile 1.75" (1U) height.
- 600 and 900 CFM units include removable rear support brackets.
- Circuit breaker protected.
- 6 foot 14/3 SJTW cord with molded 3 prong plug.
- Thermally protected, ball bearing fans.
- Integral finger guards above and below fans.
- Shipped fully assembled.
- Available with or without ON/OFF switch.
Finish
- Stocked in textured, black body finish.
- Textured black face panel.

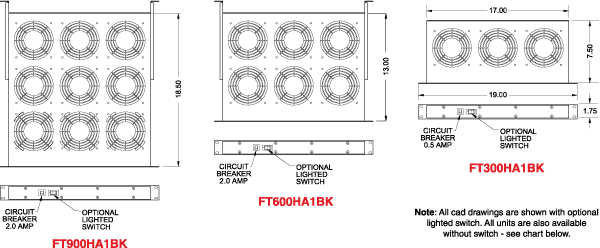

| Without Switch Part No. |
With Lighted Switch Part No. |
CFM | Running Amps | Watts | Panel Width | Case Width | Case Depth | Rear Bracket Depth | |
| Min. | Max. | ||||||||
| FT300TA1BK | FT300HA1BK | 300 | 0.5 | 40 | 19 | 17.00 | 7.50 | n/a | n/a |
| FT600TA1BK | FT600HA1BK | 600 | 1.0 | 80 | 19 | 17.00 | 13.00 | 2.40 | 19.20 |
| FT900TA1BK | FT900HA1BK | 900 | 1.5 | 120 | 19 | 17.00 | 18.50 | 7.90 | 24.70 |
