Terminal Kits for 1418 Enclosures
- Used to provide convenient mounting for terminal blocks in 1414 Series enclosures and some sizes of "PJ" Series enclosures.
- Finished in white.
- Bracket Assembly
- Each kit consists of two brackets.
- "C" channel construction provides easy alignment of terminal straps.
- Terminal Straps
- 1.5" wide x 0.187" thick steel.
- Each strap includes spring locking hardware.
- Countersunk holes in straps provide extra terminal mounting space.

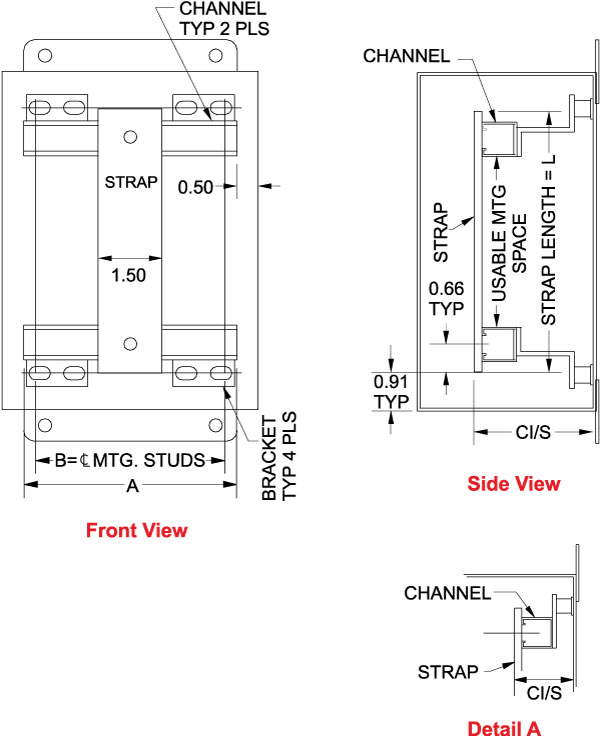

Single Strap Part No. | L=Length | Usable Mounting Space | Bracket (Pair) Part No. | Width of Box | A | B | C | Fits PJ Enclosure |
14S8 | 6.19 | 4.30 | 14B6 | 6 | 5 | 4.25 | 1.55 | PJ864 |
14S10 | 8.19 | 6.30 | 14B8 | 8 | 7 | 6.25 | 1.55 | PJ1086 |
14S12 | 10.19 | 8.30 | 14B10 | 10 | 9 | 8.25 | 2.79 | PJ12106 |
14S14 | 12.19 | 10.30 | 14B12 | 12 | 11 | 10.25 | 2.79 | PJ14126 |
14S16 | 14.19 | 12.30 | 14B14 | 14 | 13 | 12.25 | 2.79 | PJ16148 |
