Polyester Enclosure - NEMA 4X
1590ZGRP Series
Application
- Instrument and terminal wiring enclosures
- Ideal for DIN rail mounting equipment and terminal blocks
- Where environment is highly corrosive or extreme temperatures exceed polycarbonate products
- Excellent impact resistance where foreign objects may come in contact with the enclosures
- Outdoor locations including municipal yards, mining sites, machine and equipment manufactures
Standards
- UL/cUL 508 Type 1, 2, 3, 4, 4X, 12 & 13
- Complies with
- NEMA 1, 2, 3, 4, 4X, 12, 13
- IEC 60529, IP65
Construction
- Molded from grey, fiberglass reinforced polyester with smooth finish
Heavy duty, thick wall design - Includes gasketed lid with two piece “tongue & groove” construction
- Gasket material is neoprene (EDPM). Temperature resistance -40 degree C to 120 degree C.
- Lid held in place with self captivated stainless steel screw
- 304 Stainless Steel inserts
- Easy wall mounting via “ through-box, blind hole” construction outside of the gasket protection
- Inserts & mounting shelf for DIN rail mounting provided in body
- Smooth inside surface, no ribs or mold channels allowing for easy connector sealing
Finish
- Grey RAL 7001 (Dark Gray)
Accessories

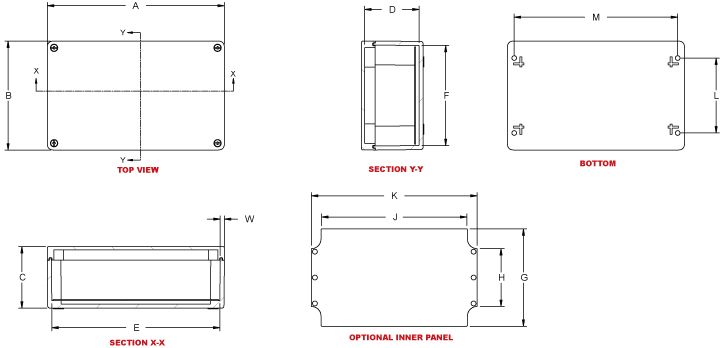

Overall Dimensions | Inside Dimensions | MountingCenters | Optional Inner Panel Part Number |
Panel Dimensions | |||||||||||
Part Number | |||||||||||||||
Units | A | B | C | D | E | F | M | L | W* | G | H | J | K | ||
1590ZGRP081 | inch | 3.15 | 2.95 | 2.17 | 1.89 | 2.8 | 2.6 | 2.68 | 1.61 | 0.18 | 1590ZGRP081PL | 2.48 | 1.02 | 2.09 | 2.68 |
mm | 80 | 75 | 55 | 48 | 71 | 66 | 68 | 41 | 5 | 63 | 26 | 53 | 68 | ||
1590ZGRP082 | inch | 4.33 | 2.95 | 2.17 | 1.81 | 3.94 | 2.56 | 3.86 | 1.77 | 0.19 | 1590ZGRP082PL | 2.44 | 1.14 | 3.23 | 3.82 |
mm | 110 | 75 | 55 | 46 | 100 | 65 | 98 | 45 | 5 | 62 | 29 | 82 | 97 | ||
1590ZGRP083 | inch | 6.3 | 2.95 | 2.17 | 1.89 | 5.94 | 2.56 | 5.83 | 1.77 | 0.17 | 1590ZGRP083PL | 2.48 | 1.18 | 5.28 | 5.83 |
mm | 160 | 75 | 55 | 48 | 151 | 65 | 148 | 45 | 4 | 63 | 30 | 134 | 148 | ||
1590ZGRP121 | inch | 4.8 | 4.72 | 2.17 | 3.19 | 4.41 | 4.37 | 4.17 | 3.23 | 0.18 | 1590ZGRP121PL | 4.21 | 2.4 | 3.39 | 4.25 |
mm | 122 | 120 | 55 | 81 | 112 | 111 | 106 | 82 | 5 | 107 | 61 | 86 | 108 | ||
1590ZGRP123 | inch | 8.66 | 4.72 | 3.54 | 3.19 | 8.27 | 4.33 | 8.03 | 3.23 | 0.18 | 1590ZGRP123PL | 4.13 | 2.4 | 7.28 | 8.07 |
mm | 220 | 120 | 90 | 81 | 210 | 110 | 204 | 82 | 5 | 105 | 61 | 185 | 205 | ||
1590ZGRP131 | inch | 7.48 | 2.95 | 3.54 | 1.89 | 7.1 | 2.56 | 7.01 | 1.77 | 0.19 | 1590ZGRP131PL | 2.48 | 1.18 | 6.38 | 7.01 |
mm | 190 | 75 | 90 | 48 | 180 | 65 | 178 | 45 | 5 | 63 | 30 | 162 | 178 | ||
1590ZGRP161 | inch | 6.3 | 6.3 | 3.54 | 3.15 | 5.79 | 5.79 | 5.51 | 4.33 | 0.24 | 1590ZGRP161PL | 5.59 | 3.31 | 4.41 | 5.59 |
mm | 160 | 160 | 90 | 80 | 147 | 147 | 140 | 110 | 6 | 142 | 84 | 112 | 142 | ||
1590ZGRP162 | inch | 10.24 | 6.3 | 3.54 | 3.11 | 9.72 | 5.79 | 9.45 | 4.33 | 0.24 | 1590ZGRP162PL | 5.63 | 3.35 | 8.39 | 9.57 |
mm | 260 | 160 | 90 | 79 | 247 | 147 | 240 | 110 | 6 | 143 | 85 | 213 | 243 | ||
1590ZGRP233 | inch | 7.87 | 9.84 | 4.72 | 4.09 | 7.33 | 9.3 | 7.09 | 7.87 | 0.24 | 1590ZGRP233PL | 9.21 | 6.85 | 6.06 | 7.17 |
mm | 200 | 250 | 120 | 104 | 186 | 236 | 180 | 200 | 6 | 234 | 174 | 154 | 182 | ||
1590ZGRP234 | inch | 9.84 | 9.84 | 4.72 | 4.29 | 9.49 | 9.29 | 9.25 | 7.87 | 0.26 | 1590ZGRP234PL | 9.13 | 6.85 | 8.19 | 9.37 |
mm | 250 | 250 | 120 | 109 | 241 | 236 | 235 | 200 | 7 | 232 | 174 | 208 | 238 | ||
1590ZGRP235 | inch | 9.84 | 9.84 | 6.3 | 5.87 | 9.49 | 9.29 | 9.25 | 7.87 | 0.26 | 1590ZGRP235PL | 9.13 | 6.85 | 8.19 | 9.37 |
mm | 250 | 250 | 160 | 149 | 241 | 236 | 235 | 200 | 7 | 232 | 174 | 208 | 238 | ||
1590ZGRP243 | inch | 15.75 | 9.84 | 4.72 | 4.29 | 15.2 | 9.29 | 14.96 | 7.87 | 0.25 | 1590ZGRP243PL | 9.13 | 6.85 | 13.86 | 15.04 |
mm | 400 | 250 | 120 | 109 | 386 | 236 | 380 | 200 | 6 | 232 | 174 | 352 | 382 | ||
1590ZGRP263 | inch | 23.62 | 9.84 | 4.72 | 4.29 | 23.07 | 9.29 | 22.83 | 7.87 | 0.25 | 1590ZGRP263PL | 9.13 | 6.85 | 21.89 | 23.03 |
mm | 600 | 250 | 120 | 109 | 586 | 236 | 580 | 200 | 6 | 232 | 174 | 556 | 585 |
