Application

• Designed to house electrical, electronic, hydraulic or pneumatic controls with provision for panel mount­ing or rack mounting of equipment.
• Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a serious problem.
• A variety of inner panels, rack mounting rails and swing out frames are available to provide flexibility in mounting arrangements.

Standards

• UL 508 Type 3R, 4, 4X and 12
• CSA Type 3R, 4, 4X and 12
• Complies with
  • NEMA Type 3R, 4, 4X, 12 and 13
  • IEC 60529, IP66

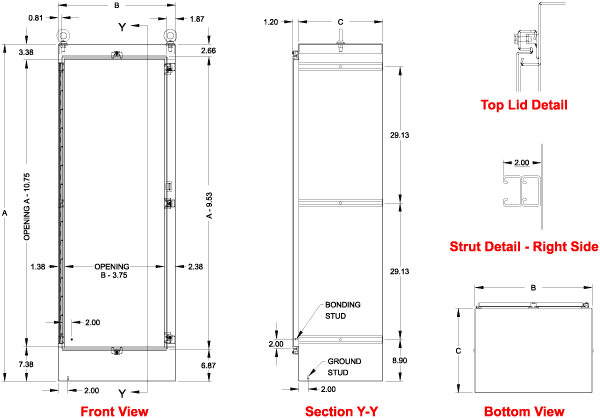

Construction

• Formed 12 gauge 304 or 316 stainless steel.
• Smooth, continuously welded seams without knockouts, cutouts or holes.
• Heavy duty stainless steel lifting eyebolts are provided with reinforcing support angles.
• Doors are supported with heavy gauge continuous hinges.
• Doors are secured with heavy duty stainless steel clamps.
• Seamless poured-in place gasket.
• Mounting channels are welded on the inside of the enclosure for mounting of optional inner panels or rack equipment rails.
• A grounding stud is provided in the enclosure and a bonding stud is provided on the door.

Finish

• Cover and enclosure are natural stainless steel with a smooth brushed finish.
• Optional inner panels are finished in white powder paint.

Accessories

• Air conditioners
• Air conditioners
• Breather kits
• Door Stop Kits
• Filter Fans
• Heaters
• Inner panels
• Light Kit
• Panel Rails
• Swing Frame
• Thermostats
• Window Kits
