1414 N4 AL Aluminum Series - NEMA 4
Lift-Off Cover
Application
- Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a problem.
Standards
- UL 508 Type 4 and 12
- CSA Type 4 and 12
- Complies with
- NEMA Type 4, 12, and 13
- IEC 60529, IP66
Construction
- Formed from 0.08" Type 5052 H-32 aluminum.
- Smooth, continuously welded seams without knockouts, cutouts or holes.
- Welded brackets provide for enclosure mounting.
- Cover is secured with easily operated aluminum clamps.
- Oil resistant gaskets are permanently secured with oil resistant adhesive.
- All models larger than 4" x 4" include a removable 14 gauge inner panel.
- Tapped studs are provided for mounting inner panels.
- A grounding stud is provided in the enclosure.
Finish
- Cover and enclosure are natural unfinished aluminum.
- Removable inner panel is finished in white powder coating.
Accessories

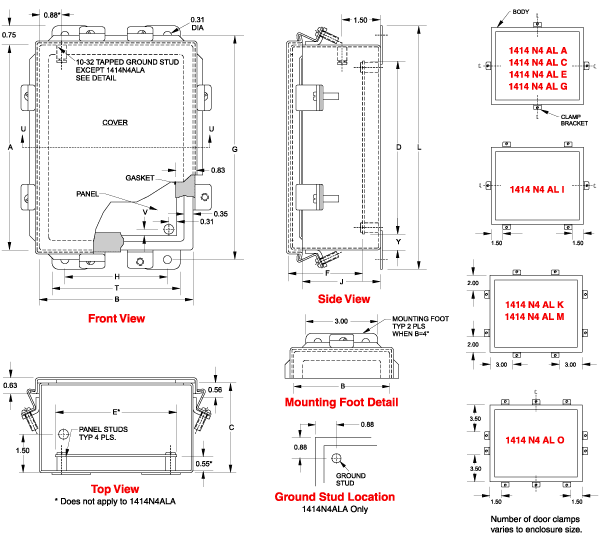

| Part No. | Panel Dimensions | Centers | J | L | Cover Dimensions | T | V | Y | Ship Wt. (lbs) |
|||||||
| A | B | C | D | E | F | G | H | |||||||||
| 1414N4ALA | 4 | 4 | 3.0 | - | - | - | 4.75 | 2 | 2.6 | 5.5 | 4.31 | 4.31 | 3 | - | - | 1 |
| 1414N4ALC | 6 | 4 | 3.0 | 4.88 | 2.88 | 2.5 | 6.75 | 2 | 2.6 | 7.5 | 6.31 | 4.31 | 3 | .31 | .56 | 2 |
| 1414N4ALE | 6 | 6 | 4.0 | 4.88 | 4.88 | 3.5 | 6.75 | 4 | 3.6 | 7.5 | 6.31 | 6.31 | 5 | .31 | .56 | 3 |
| 1414N4ALG | 8 | 6 | 3.5 | 6.75 | 4.88 | 3.0 | 8.75 | 4 | 3.1 | 9.5 | 8.31 | 6.31 | 5 | .25 | .63 | 3 |
| 1414N4ALI | 10 | 8 | 4.0 | 8.75 | 6.88 | 3.5 | 10.75 | 6 | 3.6 | 11.5 | 10.31 | 8.31 | 7 | .25 | .63 | 5 |
| 1414N4ALK | 12 | 10 | 5.0 | 10.75 | 8.88 | 4.5 | 12.75 | 8 | 4.6 | 13.5 | 12.31 | 10.31 | 9 | .25 | .63 | 8 |
| 1414N4ALM6 | 14 | 12 | 6.0 | 12.75 | 10.88 | 5.5 | 14.75 | 10 | 5.6 | 15.5 | 14.31 | 12.31 | 11 | .25 | .63 | 10 |
| 1414N4ALO6 | 16 | 14 | 6.0 | 14.75 | 12.88 | 5.5 | 16.75 | 12 | 5.6 | 17.5 | 16.31 | 14.31 | 13 | .25 | .63 | 13 |
| 1414N4ALM8 | 14 | 12 | 8.0 | 12.75 | 10.88 | 7.5 | 14.75 | 10 | 7.6 | 15.5 | 14.31 | 12.31 | 11 | .25 | .63 | 11 |
| 1414N4ALO10 | 16 | 14 | 10.0 | 14.75 | 12.88 | 9.5 | 16.75 | 12 | 9.6 | 17.5 | 16.31 | 14.31 | 13 | .25 | .63 | 15 |
