Control Panel Heater
Description
- Designed to provide recirculated coolant for most industrial applications air/water heat exhangers, process cooling, machine hydraulics or motor cooling.
Standards
- Rack Series - UL,cUL, CE
- EB30-50 -UL, cUL (ETL), CE
- EB190-400 - UL, cUL CE
Features
- Pre-engineered, packaged design includes refrigeration, cooling tank & pump and operating controls for "plug and play" operation
- Rack Series provides reliable cooling for indoor applications with heat loads less than 1 Ton
- EB Series allows outoor installations & many options with capacities to 20 Tons
- Larger sizes available
- Exterior case, galvanized steel construction finish RAL7035 Light Gray

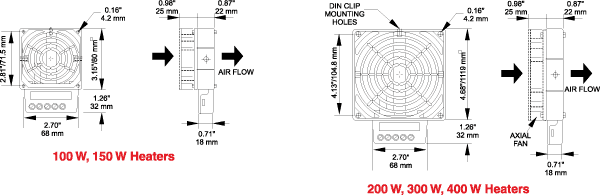

| Part No. | Watts | Operating Current (Amps) | Volts | Temperature Maximum with Fan | Ship Wt. lbs |
SHV031029 |
100 W | 0.89 | AC 120 | 250°F/120°C | 1 |
SHV031039 |
150 W | 1.30 | AC 120 | 320°F/160°C | 1 |
SHV031139 |
200 W | 1.79 | AC 120 | 250°F/120°C | 1 |
SHV031149 |
300 W | 2.62 | AC 120 | 320°F/160°C | 1 |
SHV031159 |
400 W | 3.45 | AC 120 | 360°F/180°C | 1 |
Operating Voltage: |
AC 110 -120 V 50/60 Hz |
Air Flow: |
20 CFM (100W, 150W heaters), 63 CFM (200W, 300W, 400W heaters) |
Axial Fan: |
Ball bearing |
Durability: |
30,000 hrs. at 68°F ambient temperature |
Heating Element: |
Cartridge heater |
Heating Body: |
Die cast aluminum |
Connection: |
5 pole terminal for 14 AWG (maximum) |
G/L1/N1: |
Heater |
L2/N2: |
Fan |
Mounting: |
Easily installed by clip mounting on 35 mm DIN rails (included) |
Protection class: |
1 (tested for grounding at 1250 V) |
Protection: |
IP44 |
Approval: |
UL Recognized Component, cUL Recognized Component,CE |
